CARBIDE INSERT TOOL HOLDER

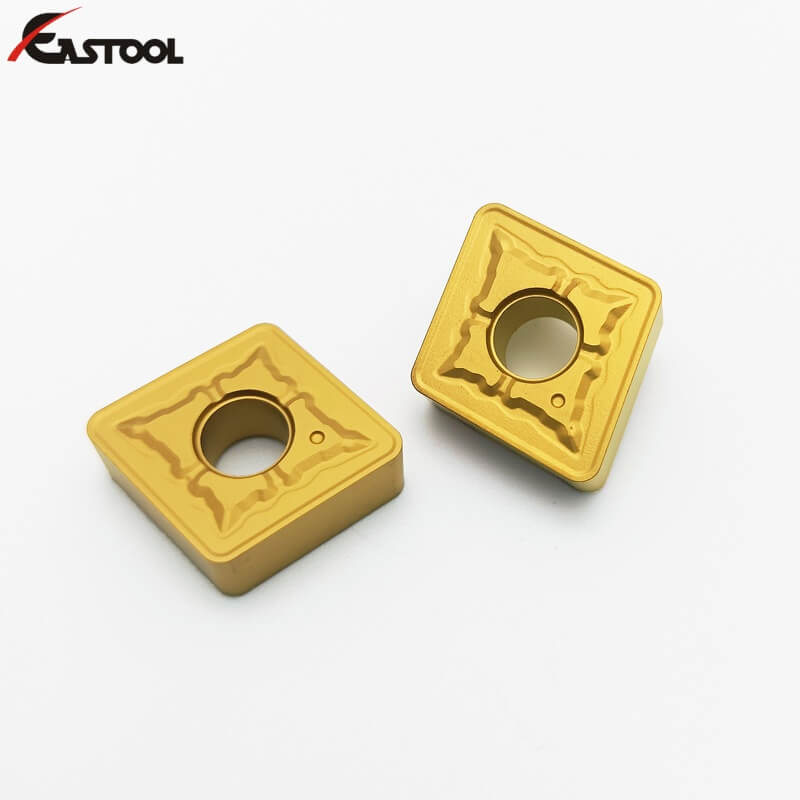

Code : CNMG120404/CNMG160608/CNMG190612/CNMG250924, Product Description Dimension                                               ISO L I.C S d r CNMG120404-TM 12.90  12.70  4.76  5.16  0.40  CNMG120408-TM 12.90  12.70  4.76  5.16  0.80  CNMG120412-TM 12.90  12.70  4.76  5.16  1.20  CNMG160608-TM 16.10&n ...

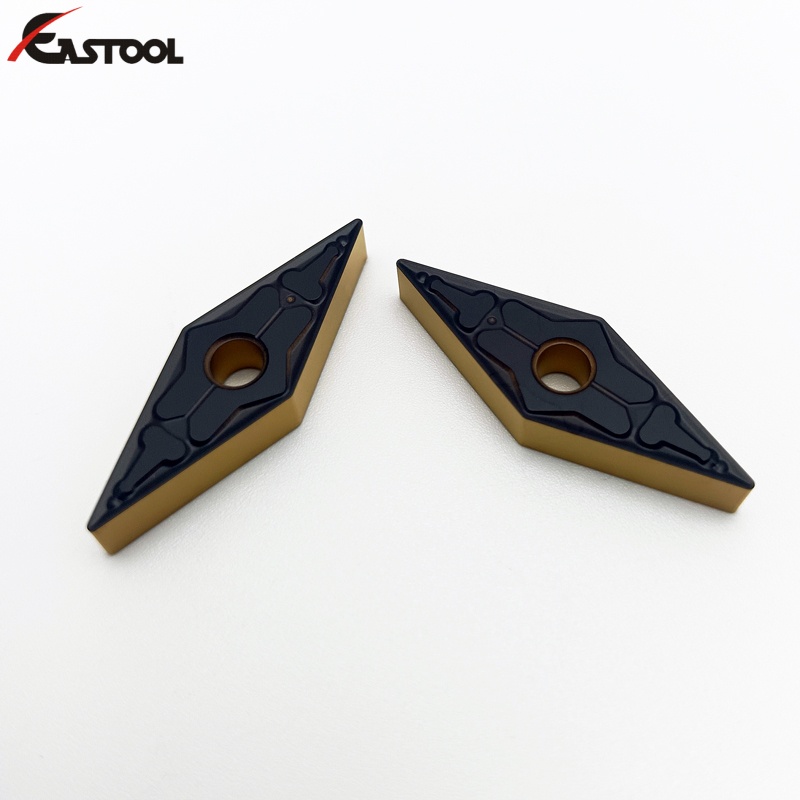

Code : Vnmg160404-TM/ Vnmg160408-TM/ Vnmg160412-TM (VNMG432), Product Description Dimension                      ISO L I.C S d r VNMG160404-TM 16.60  9.525  4.76  3.81  0.40  VNMG160408-TM 16.60  9.525  4.76  3.81  0.80  VNMG160412-TM 16.60  9.525  4.76  3.81  1.20  Grades Description CVD coated cemented carbide Grade Description Equivalent to ISO ...

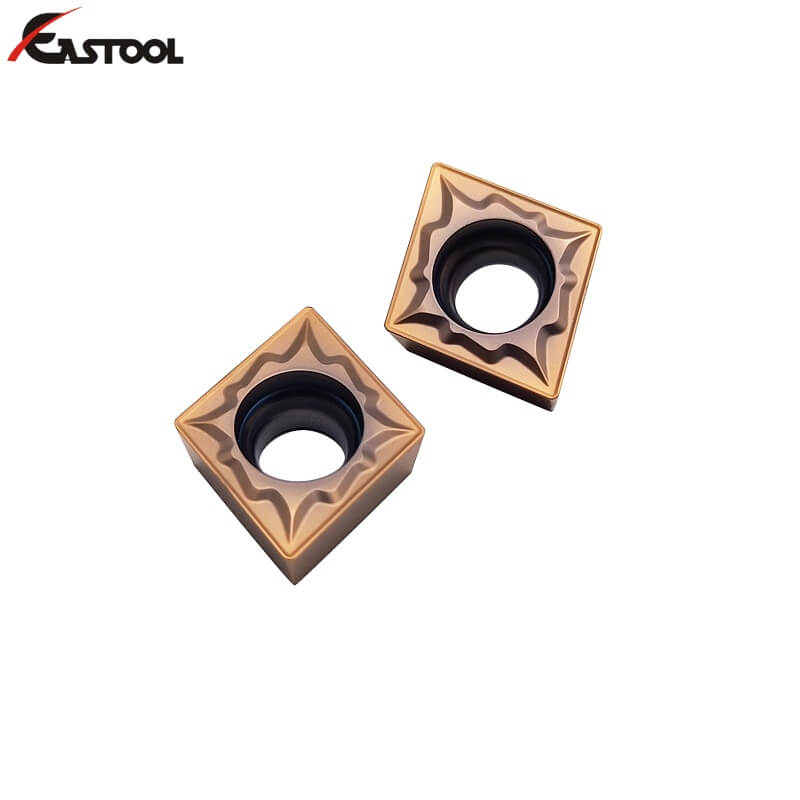

Code : CCMT060204/CCMT09T308/CCMT120412, Product Description Dimension                              ISO L I.C S d r CCMT060204-GM 6.4  6.35  2.38  2.8  0.4  CCMT060208-GM 6.4  6.35  2.38  2.8  0.8  CCMT09T304-GM 9.7  9.525  3.970  4.4  0.4  CCMT09T308-GM 9.7  9.525  3.970  4.4  0.8  CCMT120408-GM 12.9  ...

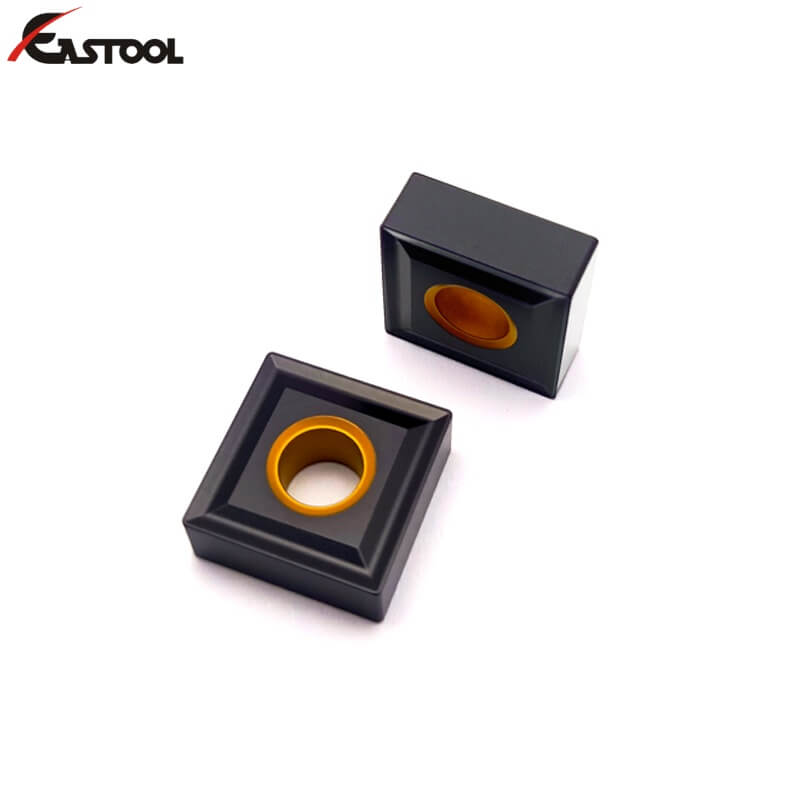

Code : SNMG120404-CM/SNMG150608/SNMG190612, Description Dimension                        ISO L I.C S d r SNMG120404-CM 12.70  12.70  4.76  5.16  0.40  SNMG120408-CM 12.70  12.70  4.76  5.16  0.80  SNMG120412-CM 12.70  12.70  4.76  5.16  1.20  SNMG150608-CM 15.875  15.875  6.35  6.35  0.80  SNMG150612-CM 15.875  ...

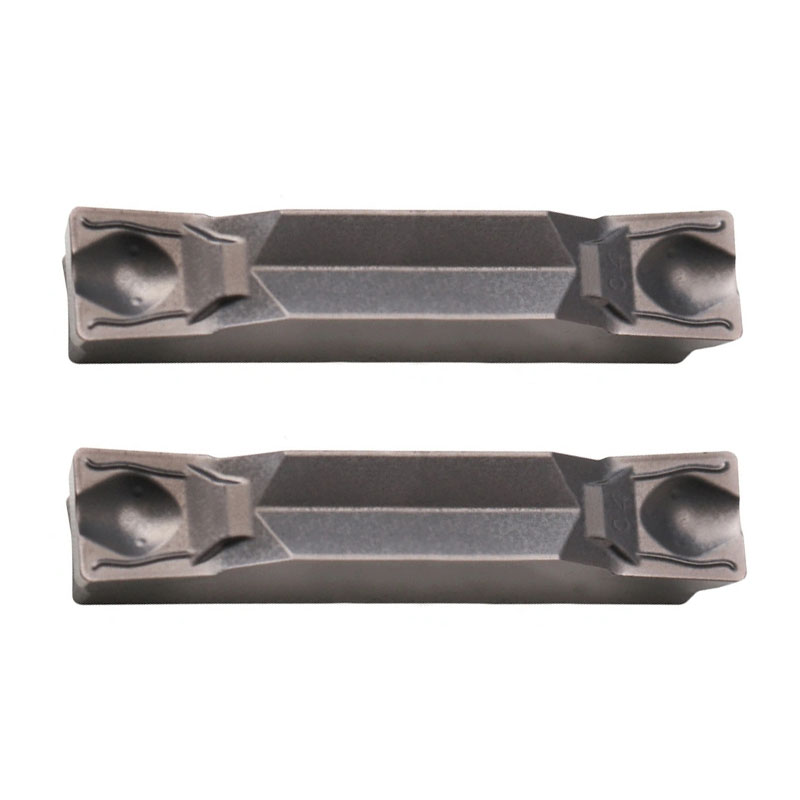

Code : Ztfd0303-Mg/ Ztgd0404-Mg/ Zthd0504, Description 1. Made from 100% virgin raw material; 2. Produced with advanced equipments and process; 3. All products go through in-process and final inspection; 4. Free online technical service available; 5. Stable and continuous production ability. PVD Coated Cemented Carbide Grade Description YP3015 2-4um TiALN PVDcoated, combinating with fine particles' substrates with high-toughness, suitabe for all materials, high-temperature alloy Ti alloy in finishing, semi-finish ...

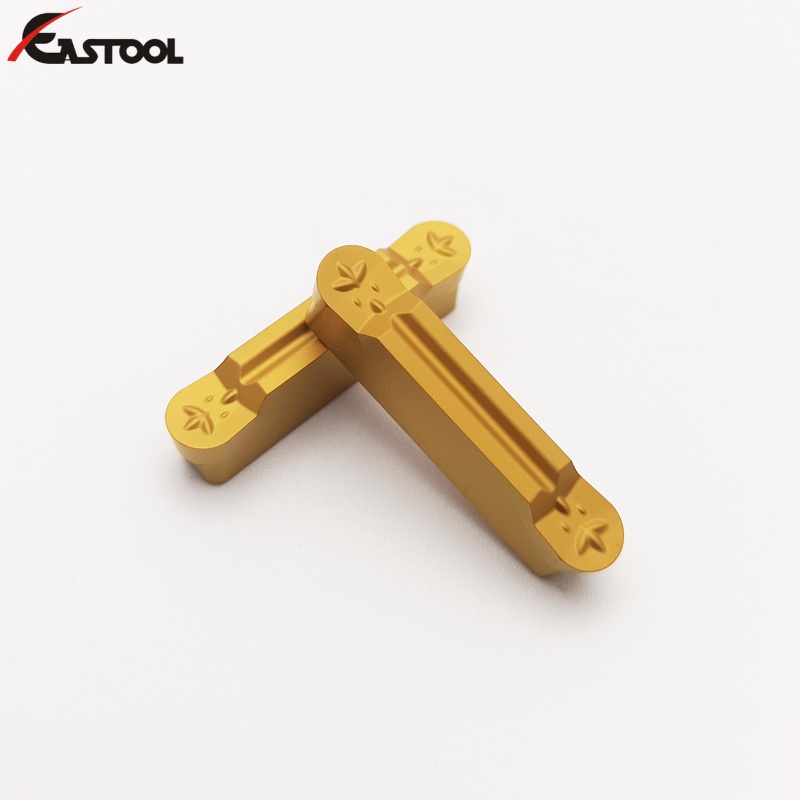

Code : MRMN200/ MRMN300/ MRMN400/ MRMN500/ MRMN600, Product Description Dimension             TYPE Dimensions (mm) b r l d t MRMN200-M 2.0  1.0  16.0  1.5  3.5  MRMN300-M 3.0  1.5  21.0  2.35  4.8  MRMN400-M 4.0  2.0  21.0  3.3  4.8  MRMN500-M 5.0  2.5  26.0  4.1  5.8  MRMN600-M 6.0  3.0  26.0  5.0  5.8  Grades Description ...

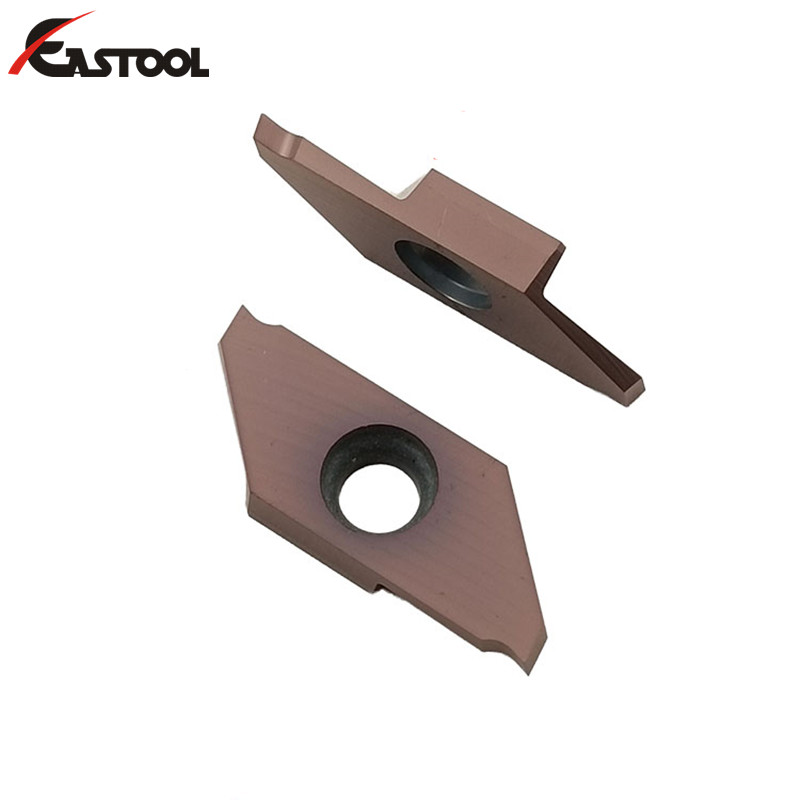

Code : Tkf16r100/150/200, Product Description Grades Description CVD coated cemented carbide Grade Description Equivalent to ISO YC1015 MT-CVD coated, the substrate with excellent wear resistance in combination with MT-TiCN,fine grained AL2O3TiN multi-layer coating, which is suitable for finishing of steel. P05-P15 YC1025 MT-CVD coated, Cutting edge with good toughness in combination with  TiCN+Al2O3(thick)+TiN multi-layer coating,which is suitable for semi-fini ...

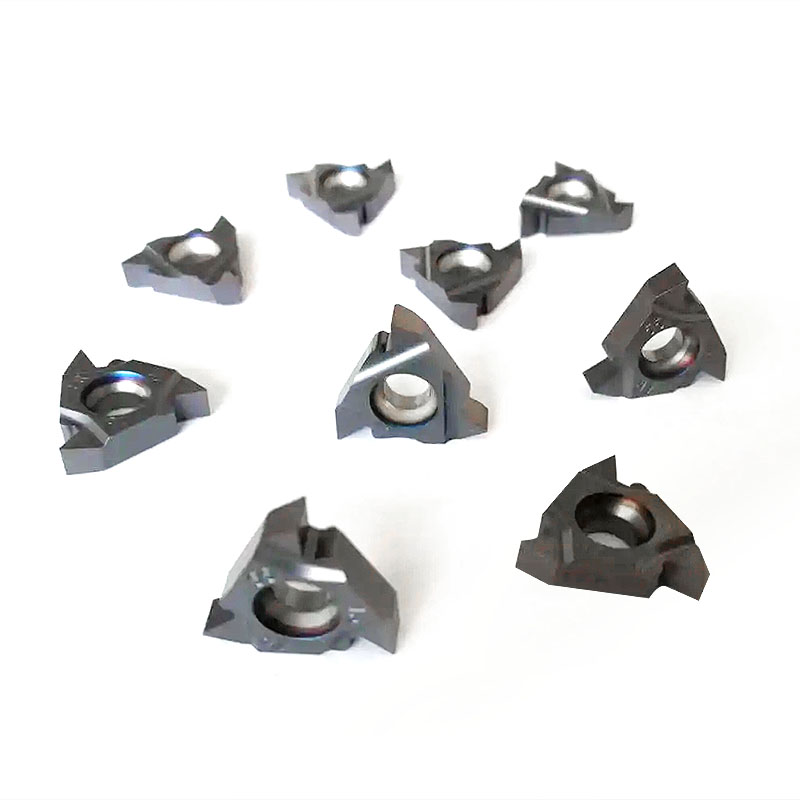

Code : 16erag60/16nrag60, Description 1. All raw materials are tested in terms of density, hardness and T.R.S before use. 2. Every piece of product goes through in-process and final inspection. 3. Every batch of product can be traced. PVD Coated Cemented Carbide Grade Description YP3015 2-4um TiALN PVDcoated, combinating with fine particles' substrates with high-toughness, suitabe for all materials, high-temperature alloy Ti alloy in finishing, semi-finishing YP3025 2-4um TiALN PVDcoated, com ...

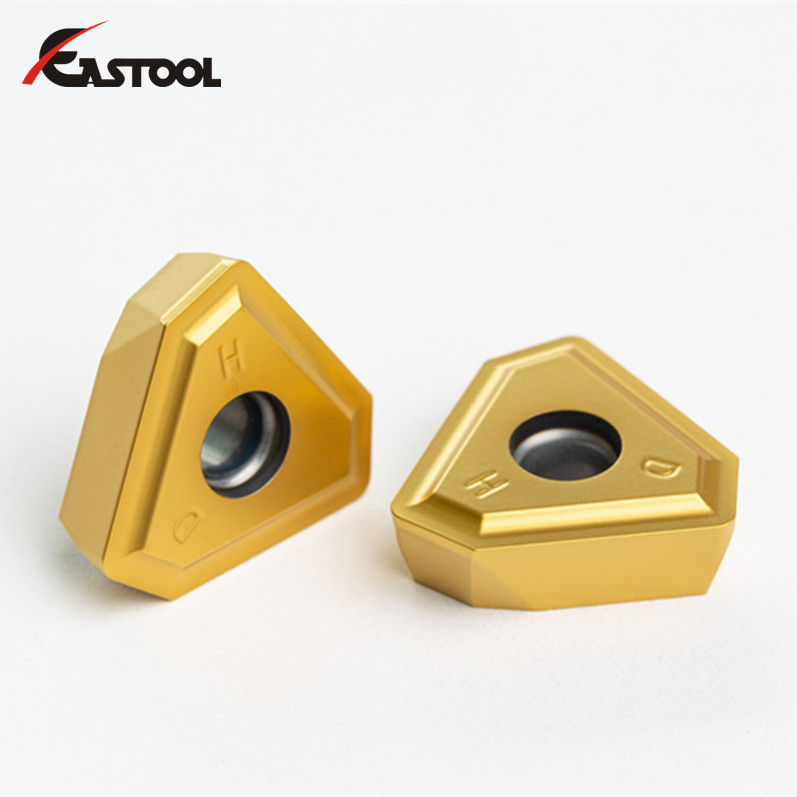

Code : Tpmx1403-Rg/Tpmx1704-Rg/Tpmx2405-Rg/Tpmx2807-Rg,   Product Description Grades Description CVD coated cemented carbide Grade Description Equivalent to ISO YC1015 MT-CVD coated, the substrate with excellent wear resistance in combination with MT-TiCN,fine grained AL2O3TiN multi-layer coating, which is suitable for finishing of steel. P05-P15 YC1025 MT-CVD coated, Cutting edge with good toughness in combination with  TiCN+Al2O3(thick)+TiN multi-layer coating,which is suitable fo ...

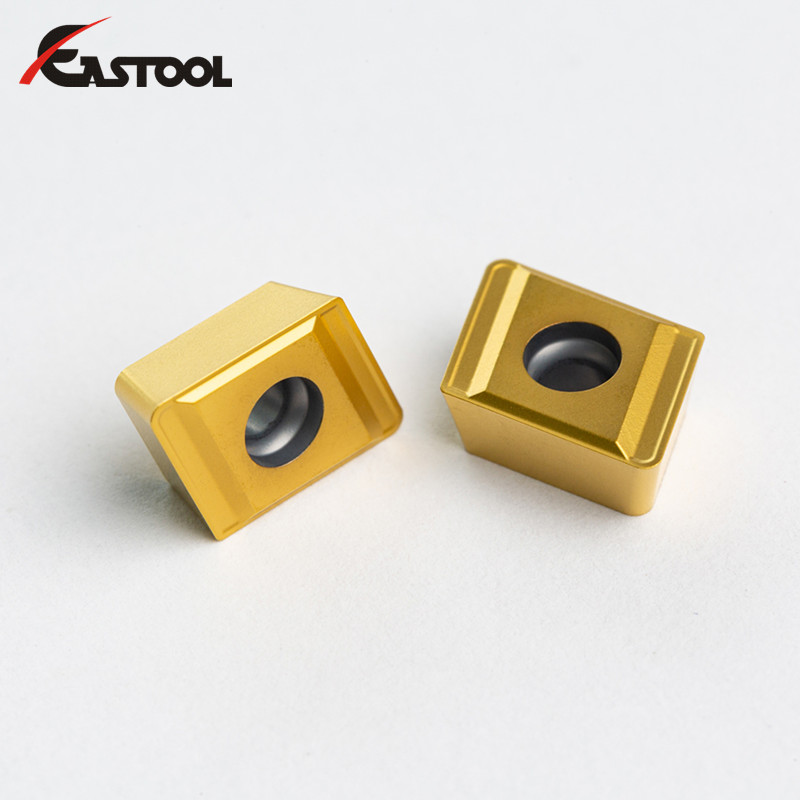

Code : 800-08t308m-C-G,   Product Description Grades Description: CVD coated cemented carbide Grade Description Equivalent to ISO YC1015 MT-CVD coated, the substrate with excellent wear resistance in combination with MT-TiCN,fine grained AL2O3TiN multi-layer coating, which is suitable for finishing of steel. P05-P15 YC1025 MT-CVD coated, Cutting edge with good toughness in combination with  TiCN+Al2O3(thick)+TiN multi-layer coating,which is suitable for semi- ...
